Creating OS Images in less than one Minute

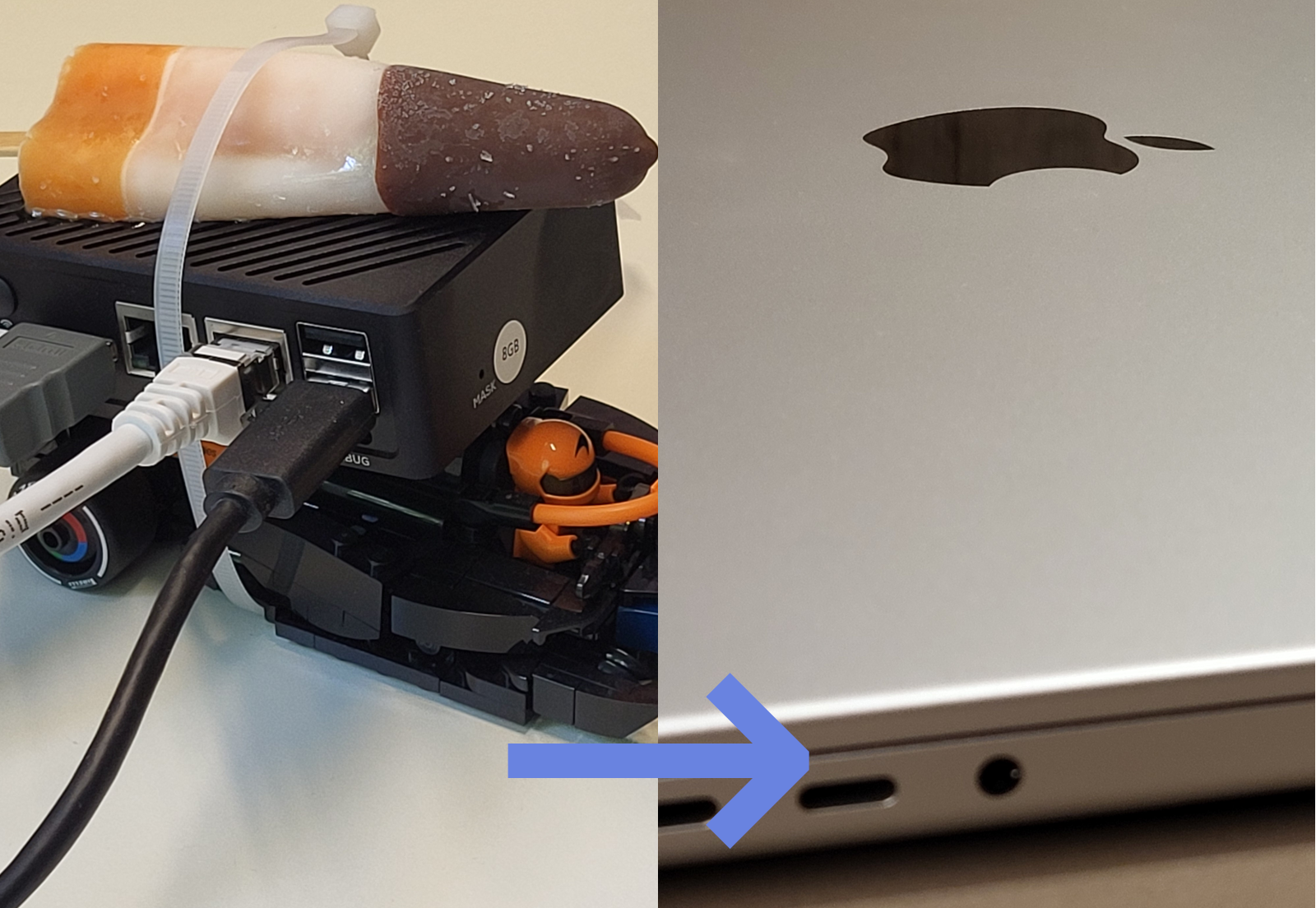

In my previous post I demonstrated how to speed up embedded development using a rocket ice cream and a Nano Pi R6C. Maybe you are wondering if that setup would be accepted by the IT department of your company. Maybe not. Even the building cleaning service couldn’t be too enthusiastic.

That’s why I am now switching to a MacBook:

As is well known, the MacBook runs best with macOS, which is why I am installing Debian Trixie as a virtual machine.

Without much evaluation, I downloaded and installed VMWare Fusion. The tool is now free for all users - the download is a bit of an adventure, as you need a Broadcom support account.

The setup of Debian Trixie is smooth, and even accelerated 3D graphics can be enabled. Debian Trixie also installs open-vm-tools-desktop right away, so that copy and paste between macOS and Debian work out of the box.

The installation of edi is carried out in accordance with the official documentation.

Since I am aiming for the shortest possible build time, I also install Ansible Mitogen:

sudo apt install ansible-mitogen

And activate it by adding the following content to ~/.ansible.cfg:

[defaults]
strategy = mitogen_linear

Warning:

Some Ansible tasks might fail when Mitogen is being used. Those tasks can usually be fixed by adding the following variable to the task:

  vars:
    mitogen_task_isolation: fork

After resolving a simple issue, I succeeded building the first OS image on the new setup:

lueschem@debian:~/edi-workspace/edi-pi$ time edi -v project make pi5.yml

...

Success: Completed the project make post processing commands.
The following artifacts are now available:
- edi_prerequisites_log: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_prerequisites.log
- edi_bootstrapped_rootfs: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_bootstrapped-rootfs.tar
- edi_project_container: edi-53a7ec63-429715a5
- edi_project_container_seal: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5.seal
- pp_timestamp: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_timestamp
- pp_rootfs_archive: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_configured-rootfs.tar
- pp_image: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5.img
- pp_partition_image: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_rootfs.ext4
- pp_mender_artifact: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5.mender
- pp_documentation: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_documentation
- pp_fully_named_artifacts: /home/lueschem/edi-workspace/edi-pi/artifacts/pi5_fully_named_artifacts

real	0m38.692s
user	0m25.214s
sys	0m6.509s

Wow, so the OS image is assembled in less than a minute. That makes it more than twenty times faster than on my old notebook.

Before celebrating this success, I also check a legacy configuration:

lueschem@debian:~/edi-workspace/edi-pi$ edi -v project make pi2.yml

...

INFO:root:Running command: ['sh', '-c', '/home/lueschem/edi-workspace/edi-pi/tmpkxx8slxg/mmdebstrap.edi']
I: automatically chosen mode: unshare
update-binfmts: warning: qemu-arm not in database of installed binary formats.
update-binfmts: exiting due to previous errors
W: qemu-arm is not a supported binfmt name
E: armhf can neither be executed natively nor via qemu user emulation with binfmt_misc
Error: Going to clean up after abnormal script termination.
Error: Abnormal script termination.
Error: Command '['sh', '-c', '/home/lueschem/edi-workspace/edi-pi/tmpkxx8slxg/mmdebstrap.edi']' returned non-zero exit status 1.
For more information increase the log level.

Sorry, something went wrong.

That’s the explanation: The Raspberry Pi 2 uses a 32-bit AArch32 (armhf) setup. The Rockchip RK3588 CPU from the rocket ice cream setup has no problem with this and fully supports the required 32-bit instruction set. These legacy instructions no longer exist on Apple Silicon CPUs, and I am dependent on emulation. However, the qemu-user package does not automatically enable support for armhf.

Fortunately, this can be easily fixed:

sudo ln -rs /usr/share/qemu/binfmt.d/qemu-arm.conf /usr/lib/binfmt.d/
sudo systemctl restart binfmt-support systemd-binfmt

Now I am ready for armhf emulation:

lueschem@debian:~/edi-workspace/edi-pi$ ls -al /proc/sys/fs/binfmt_misc/ | grep qemu-arm$
-rw-r--r-- 1 root root 0 Sep 12 15:02 qemu-arm

The image for the Raspberry Pi 2 can now be built.

lueschem@debian:~/edi-workspace/edi-pi$ time edi -v project make pi2.yml

...

Success: Completed the project make post processing commands.
The following artifacts are now available:
- edi_prerequisites_log: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_prerequisites.log
- edi_bootstrapped_rootfs: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_bootstrapped-rootfs.tar
- edi_project_container: edi-92958a6e-429715a5
- edi_project_container_seal: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2.seal
- pp_timestamp: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_timestamp
- pp_rootfs_archive: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_configured-rootfs.tar
- pp_image: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2.img
- pp_partition_image: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_rootfs.ext4
- pp_mender_artifact: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2.mender
- pp_documentation: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_documentation
- pp_fully_named_artifacts: /home/lueschem/edi-workspace/edi-pi/artifacts/pi2_fully_named_artifacts

real	5m0.403s
user	4m18.057s
sys	0m24.957s

Five minutes is still acceptable. However, emulation slows down the process considerably, and I need more time than I would on the rocket ice cream setup.

Conclusion

When I first saw the 38-second duration for the arm64 build, I didn’t believe the number and double-checked to see if a valid operating system artifact had been generated. The test was positive.

For 64-bit embedded systems, the setup presented here is terrific.

For 32-bit legacy systems, a platform with native 32-bit support (e.g., Raspberry Pi 5, Nano Pi R6C) may be the better choice.
